Features
• 0.5 - 2.7 GHz signal and noise frequency range
• -93 dBm/Hz maximun noise spactral density
• 81 dB SNR range
• 8 channels with uncorrelated noise sources
• ± 3 dB noise flatness over full band
• <0.1 dB/°C noise stability over temperature
• Internal webserver
• Configurable IP settings
• 19", 2HU rackmountable chassis

Overview

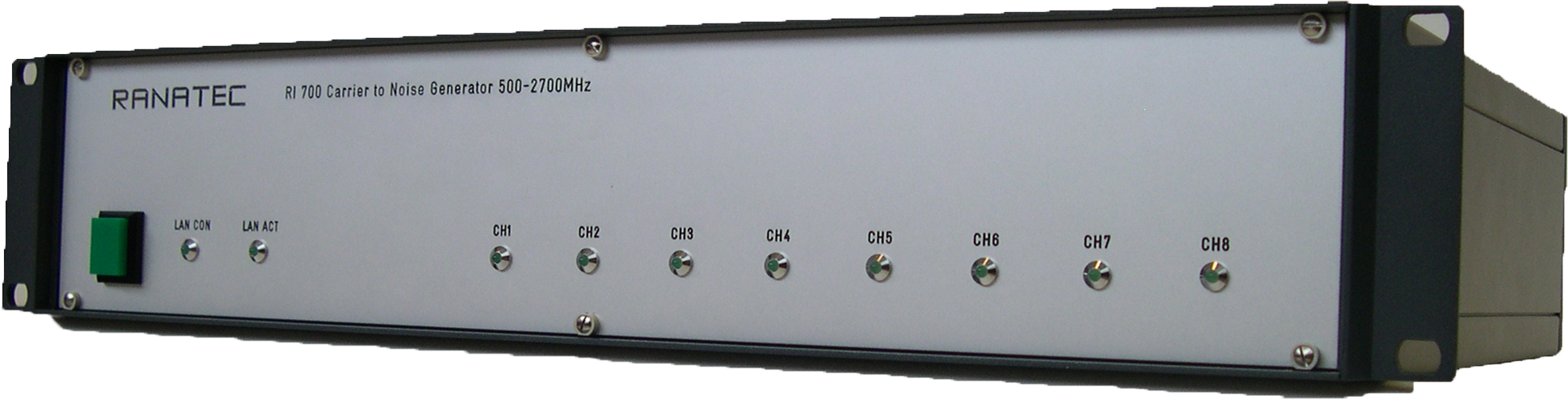

The Ranatec RI 700 is a wideband Carrier-to-Noise Generator with 8 separate channels. Noise spectral density can be set to any value between -174 and -93 dBm/Hz in 0.5 dB steps.

Applications
The RI 700 is designed to cover all cellular bands, making it ideal for applications such as
